TTGO T-Beam Guide

The T-Beam is an ESP32-based development board with integrated LoRa radio, GPS, and battery management. Perfect for full-featured DIY aviation transmitter builds with Stratux integration.

See also:SoftRFT-MotionOGNFLARMFrequencies
ESP32Dual-core 240 MHz
LoRa Radio868/915 MHz
USB PoweredNo battery holder
WiFi/BTConnectivity
Related:SoftRF FirmwareT-Motion GuideFlash T-BeamAdd Pressure SensorBuy T-Beam

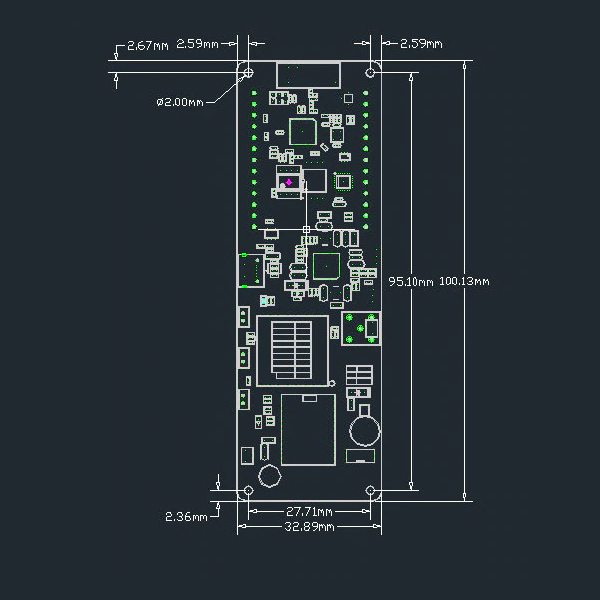

T-Beam Hardware Specifications

ProcessorESP32 (dual-core 240 MHz)
LoRa RadioSX1276 or SX1262 (868/915 MHz)
GPS Moduleu-blox NEO-6M or NEO-M8N
Power / BatteryUSB powered, modified without battery holder
Power InputUSB-C, 5V input
Current Draw~160-280 mA (active)
ConnectivityWiFi, Bluetooth, USB Serial, UART
BarometerOptional (add BMP280 sensor)
Dimensions~100 Γ— 32 Γ— 15 mm

SX1276 vs SX1262: Which LoRa Chip?

T-Beam modules come with different Semtech LoRa chips. The SX1262 is the newer generation with better power efficiency, though both work excellently for aviation use.

AspectSX1276 (Gen 1)SX1262 (Gen 2)
GenerationGen 1 (2013)Gen 2 (2018)
TX PowerUp to +20 dBmUp to +22 dBm (better PA)
RX Sensitivity-137 to -142 dBmUp to -148 dBm
Power Draw (RX)~10-11 mA~4.6 mA (50% less)
Firmware SupportFully supported (most common)Supported (verify version)
AvailabilityT-Beam v1.0, v1.1T-Beam Supreme, newer
RecommendationMaximum compatibilityBattery-powered setups

πŸ’‘ Newer Gen 3/4 chips (LR1121, LR2021) exist but aren't yet common in T-Beam modules. The SX1262 remains the best choice for new builds in 2026.

T-Beam Wiring & Integration

USB Connection (Recommended)Recommended

Connect T-Beam to Raspberry Pi via USB cable. Stratux auto-detects the device. Simple and reliable.

T-Beam USB-C β†’ USB-A cable β†’ Pi USB port

UART Serial (Advanced)

For custom integrations, T-Beam exposes 3.3V UART pins. Connect TX→RX, RX→TX, GND→GND. Useful for permanent installations.

T-Beam TX (GPIO 1) β†’ Pi RX (GPIO 15)
T-Beam RX (GPIO 3) β†’ Pi TX (GPIO 14)
T-Beam GND β†’ Pi GND

Stratux Integration Modes

Standalone T-Beam

T-Beam runs independently with SoftRF or GXAirCom firmware, transmitting position and receiving nearby traffic. Can output to EFB via WiFi/Bluetooth.

Stratux with T-Beam TX

T-Beam connected to Stratux via USB or UART. Stratux provides position data, T-Beam handles transmission. Best of both worlds: SDR reception + T-Beam OGN TX.

Stratux Pro (Pre-Integrated)

Our Stratux Pro and Dual Pro models include pre-configured T-Beam module(s) for plug-and-play OGN transmission. No wiring or firmware flashing required.

Best Use Cases for T-Beam

DIY Stratux Builds

Full-featured transmitter module for custom Stratux installations with maximum flexibility.

Glider Clubs

Affordable OGN tracking solution for club fleets. Battery-powered for easy installation.

Standalone Trackers

Independent OGN/FLARM tracker with WiFi output to EFB apps. No Stratux required.

Related Technology Guides

FLARM

Anti-collision for gliders & GA

OGN

Open Glider Network tracking

SoftRF Firmware

OGN/FLARM transmitter firmware

T-Motion & Dongle

Compact USB transmitter

View all guides

Ready to Build?

Check out our DIY guides for T-Beam firmware flashing and Stratux integration, or explore pre-built Stratux Pro systems with integrated T-Beam.

Flash T-Beam GuideView Stratux Pro
