How to Install VFR Charts

Add Open FlightMap Europe or US VFR Sectional Charts to Stratux

This section explains how to install OpenFlightMaps Europe or US VFR Sectional Charts to the Stratux web interface. This map should only be used for a quick look rather than for navigation purposes.

Prefer a ready-to-fly SD card?

Too lazy or unsure how to establish the setup below? Buy a pre-configured SD card with the latest Stratux firmware and charts instead.

Buy Pre-configured SD Card
Europe

Open FlightMap Europe

Free VFR charts covering most of Europe with airspace, airports, and terrain information.

Open FlightMap
USA

US VFR Sectional Charts

FAA VFR sectional charts for the United States, updated regularly.

FAA Charts

Use PuTTY to enable SSH connection to your Stratux/Raspberry Pi

  1. 1The operating system has already been flashed on a SD card.
  2. 2Download and install the latest version of PuTTY, a client to enable SSH connection.
3
Since your Laptop has to connect to Stratux's WiFi it won't be connected to the internet to download files. Therefore, please connect your Raspberry Pi to your router by using an Ethernet cable.
  1. 4Boot up your Stratux.
  2. 5Stratux' WiFi should appear in your Laptop's network section.
  3. 6Since the firmware version 026 or newer does no longer allow to write logs to micro SD card, a quick change in the Stratux web interface > Settings > Diagnostics is needed.
  4. 7Go to Diagnostics and set "persistent logging" to enabled. This will allow us to modify the firmware.

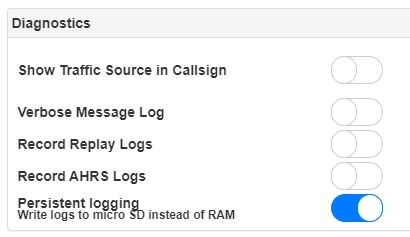

Settings → Diagnostics → Enable Persistent Logging
  1. 8Execute PuTTY and use Stratux' default IP address as the Host Name: 192.168.10.1 (Port 22, connection type SSH).

Use the Raspberry Pi's standard username "pi" and password "raspberry". The screen should look like the following:

Installing a Traffic Map in Stratux' Web Interface

Highlight the source code below, go to PuTTY and right-click to paste the commands, then press Enter:

sudo -s
cd /overlay/robase/opt/stratux/mapdata
./download_mapdata.sh

You are now asked if you want to download OpenFlightMaps Europe (~700 MiB) - US VFR Sectional Charts come second. Press the "y" key to get the map installed.

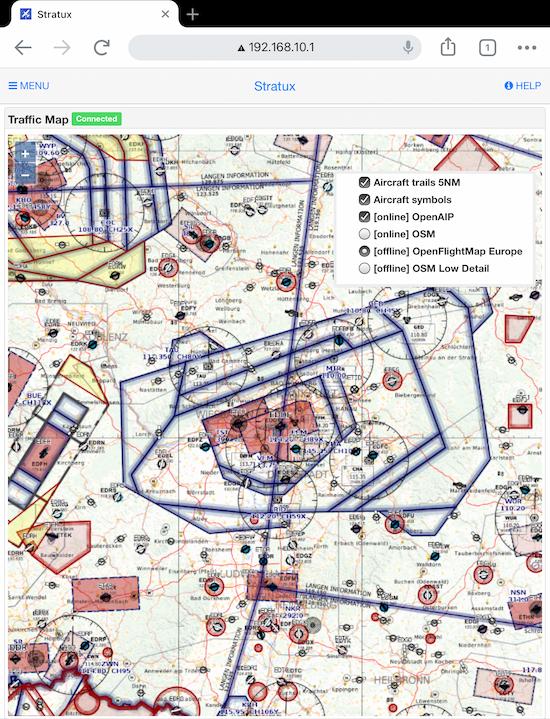

You will now be able to see the installed map within the Web Interface > Map.

Debugging

If you see an issue with your "internet connection", even when connected via the LAN cable, run the following command to ensure the Raspberry Pi receives an IP address from your router:

sudo dhclient eth0

If you see a "certificate error":

Run the following command:

systemctl start systemd-timesyncd

After you finished the installation of OpenFlightMaps, you have to run:

systemctl stop systemd-timesyncd

Then reboot and disable the persistent mode.

Adding your own maps (mbtiles)

Stratux supports the "mbtiles" format to store map data. If you want to add more or different maps to Stratux, simply place them in the following directory:

eu025 version:

/opt/stratux/mapdata

eu026 version or newer:

/overlay/robase/opt/stratux/mapdata
  • Original source: https://github.com/b3nn0/stratux/wiki/Downloading-better-map-data
  • Instructions above are provided "as is" with no express or implied guarantee.

Tips

  • Open FlightMap charts are updated quarterly - check for new versions regularly
  • Download only the regions you need to save storage space
  • The web interface map is for reference only - always use your primary EFB for navigation
